BRUNO

COMMERCIAL LIFTS

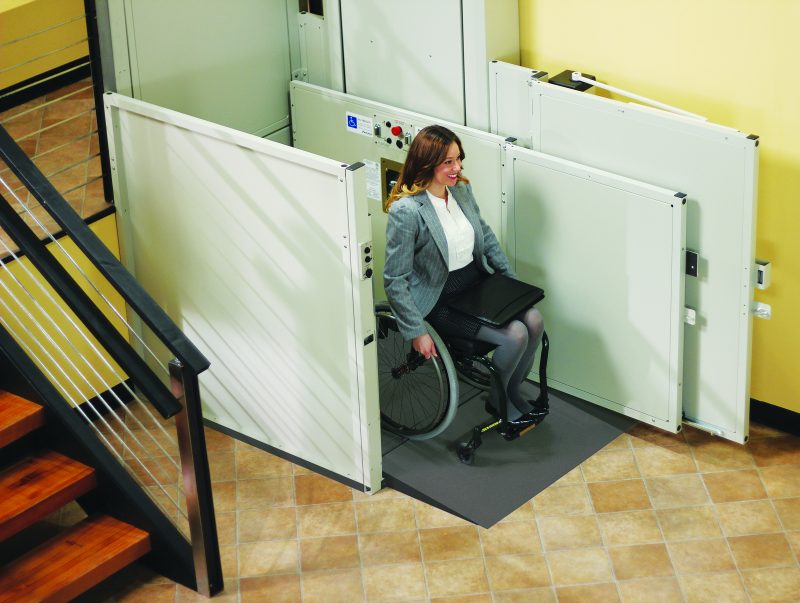

For 30 years, Bruno has provided accessibility solutions for people challenged by limited mobility. Safety and dependability are hallmarks of the Bruno name, and all Bruno vertical platform lifts (VPLs) are made in the USA and suitable for indoors or outdoors. Bruno’s VPL-3300B series wheelchair lift includes four effective solutions for Americans with Disabilities Act (ADA) compliance in churches, schools or businesses:

  • Enclosed
  • Unenclosed
  • 3-Gate (Toe guard)
  • Shaftway/Hoistway

All Bruno VPLs are designed in accordance with ASME A18.1, section 2 and can be used in most applications to meet ANSI A117.1 National Accessibility Guidelines. to another.

Manufacturer's Certificate
1-866-471-6536
COMMERCIAL LIFTS
COMMERCIAL LIFTS

FEATURES

  • Access up to 14 ft
  • Keyed, constant pressure rocker switch control on platform
  • Emergency stop switch and audio/visual alarm
  • Top and bottom limit switches
  • Bottom platform safety panel
  • 42 in (1067 mm) high, solid, side platform walls
  • 36 in x 54 in (914 mm x 1372 mm) non-skid platform
  • Automatic folding ramp (unenclosed unit only)
  • Fixed ramp (enclosed and 3-gate – no pit)
  • 750 lb (340 kg) lifting capacity
  • Reliable, quiet ACME screw-driven DC motor with full-time battery operation offers access even in a power outage – Models VPL-3353B & VPL-3375B 1/2 hp DC motor (includes 17AH batteries); models VPL-3310B, VPL-3312B, and VPL-3314B 1hp DC motor (includes 34 AH batteries)
  • Gold Warranty: Two years on major components; one year on parts

OPTIONS

  • Top landing gate includes call/send controls with key and mechanical or electrical interlock
  • Cold Weather Package, tested to improve performance (recommended if operating temperature is below 20˚F/-7˚C)
  • Several platform sizes and configurations
  • Rocker switch or paddle controls on the platform
  • Rocker switch or paddle landing controls
  • Flush mount doors with interlock
  • Power assisted door/gate operator
  • ADA compliant telephone kit
  • Platform gate (unenclosed application)
  • Plexiglass panels: clear or bronze
  • Secondary grab rail
  • Flood zone tower
  • Flood zone sensor kit
  • Braille plate kit
  • Pit Switch
